Brief Introduction:

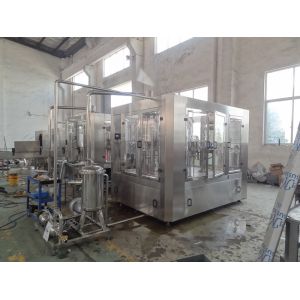

This juice machine integrates washing, filling and capping into one
unit, it can be used for hot-filling production of different kinds
of fruit juice, tea. This orange juice hot filling machine can also
be used for the filling of purified and mineral water.
Main feature of our juice filling machine
1). The parts which contact with the liquid are made of SUS304
stainless steel.
2). All the electrical parts and pneumatic components are supplied
by world famous supplier, such as PLC and inverter are from
MITSUBISHI, pneumatic components is from FESTO (SMC is an option),
Motor is from SEW, contactor and breaker are from DELIXI, touch
screen is from WEINVIEW, etc. With these top quality components,
the water filling machine runs stably
Standard juice filling machine is as following:
1). The raw water will be purified and sterilized after passing
through the water treatment system, and will be stored in the
purified water storage tank;
2). The juice will be prepared by the juice preparation system, the
prepared juice is stored in the insulation tank (for heat
preservation) temporarily;
3). Automatic heat resistance PET bottle blow molding machine is
connected with the water filling machine by the Air conveyor;
4). Prepared juice will be pumped into the juice filling machine;
At the same time, empty bottles pass through the rinsing, filling
and capping 3-in-1 monoblock, the bottles will be rinsed, filled
and capped.
5). Bottled water goes out from the orange juice hot filling
machine and will be transferred to the bottle over-turn sterilizing
machine, the cap and the bottle mouth will be sterilized after passing through the sterilizing machine, then the bottles will be
transferred to the bottle cooling machine;
6). The bottles are getting dried after passing through the blowing
dryer, and the dried bottle will go to the labeling machine and PE
film shrink wrapping machine;
7). The packed bottle water will come out from the PE film shrink
wrapping machine.
Advantages of our juice filling machine
1). Full filling to avoid the liquid level from sinking after the
bottle cooling down, and to decrease the dissolved oxygen to the
utmost extent.
2). Reasonable structured storage hopper and material supply system
make the material in constant flow speed, constant pressure without
frothing. Usually high position tank is adopted.
3). The storage hopper has the characteristic of gas discharge,
full sealing and temperature detecting. In moderate and high speed
production line, the material distributor replaces the big liquid
tank to realize the complete CIP.

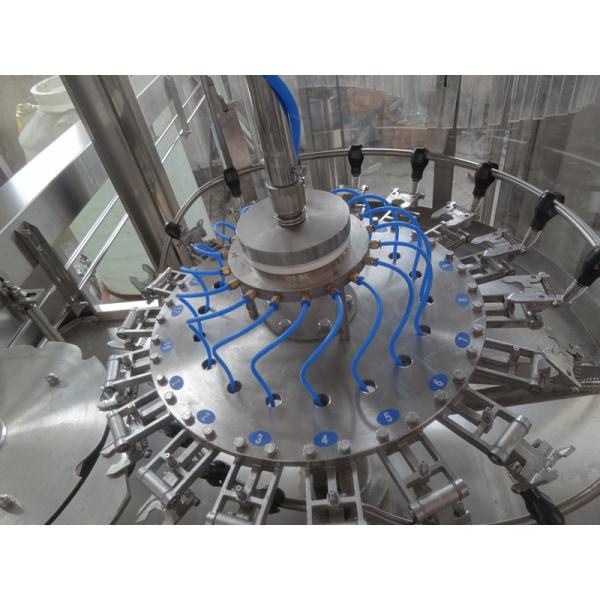

4). Sanitary filling head system is of umbrella structure, high
filling speed.
5). Perfect filling temperature control system.
6). Reflux tank system has the function of supplying the material
automatically.
7). Perfect CIP system.
