Juice Can Filling Machine , Vodka Aluminum Can Filler And Sealer
Production Description of can filling machine
This can filling machine is developed by our company on the basis
of reference to the foreign filling and sealing machine for non
gassy beverage and combining with China's national conditions.It is
mainly used for filling and sealing all kinds of iron and aluminum
cans.It has the characteristics of fast filling and sealing speed,
consistent height between the liquid level in the tank and the
opening after filling, stable operation of the whole machine, good
sealing quality, beautiful appearance, convenient use and
maintenance, touch screen operation, frequency conversion speed
regulation and so on. It is the most ideal filling and sealing
equipment for canning factories.This product conforms to the
national standards and enterprise standards, and is allowed to
leave the factory after passing the strict inspection and test.
Technical parameter of can filling machine
Model | GF12-4 |
Capacity (can/Hour) | 6000 |
Suitable can size ( ml ) |
Can diameter: 54.9mm; 57.5mm Can height:134mm; 168mm
|
Can size | 200/202/206/209 |
Heads of filling | 12 |
Heads of sealing | 4 |
Compressed air:
| 0.4-0.8mpa, flow rate: 0.16m3/min |
Filling temperature(℃ ) | Normal temp |
Power source specification | AC380V/50HZ |
Power (kw) | 10 |
Overall dimension(mm) | 3450*1600*2150 |
Weight(kg) | 3450 |
Main image show of can filling machine

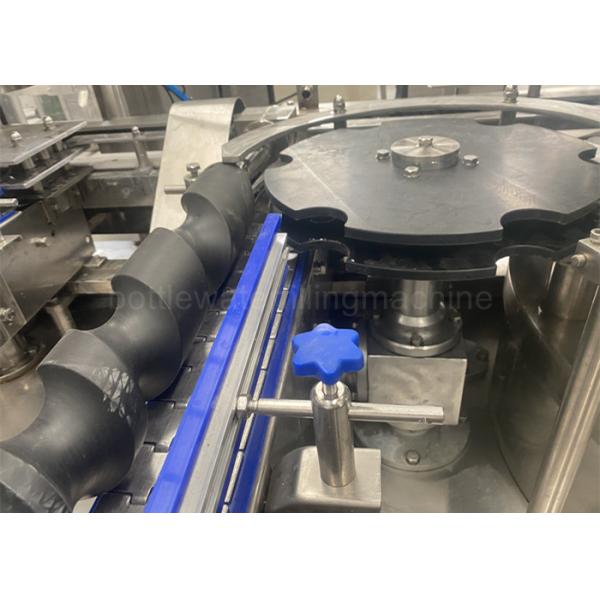

Can feeding part
The feeding and conveying parts are mainly composed of conveying
support, conveying chain plate, feeding dial assembly and dividing
screw assembly. The can is driven into the conveyor belt by the
chain plate, and evenly enters into the can feeding dial through
the can dividing screw, and then is sent to the filling valve of
the filling cylinder for filling
Lid dropping part
The lid dropping parts are mainly composed of fixed plate, cover
shifting plate, inner and outer guide plate, transmission gear box,
cover splitter, cover cutter, casting box and cover dropping seat.
We can supply you with complete aluminum can filling production
line for juice or water ot carbonated drink,just give us your
requirements,you can inquiry me freely,I will contact you in time.
